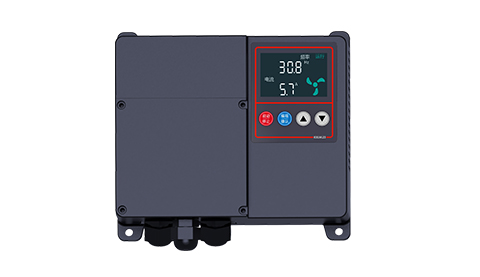

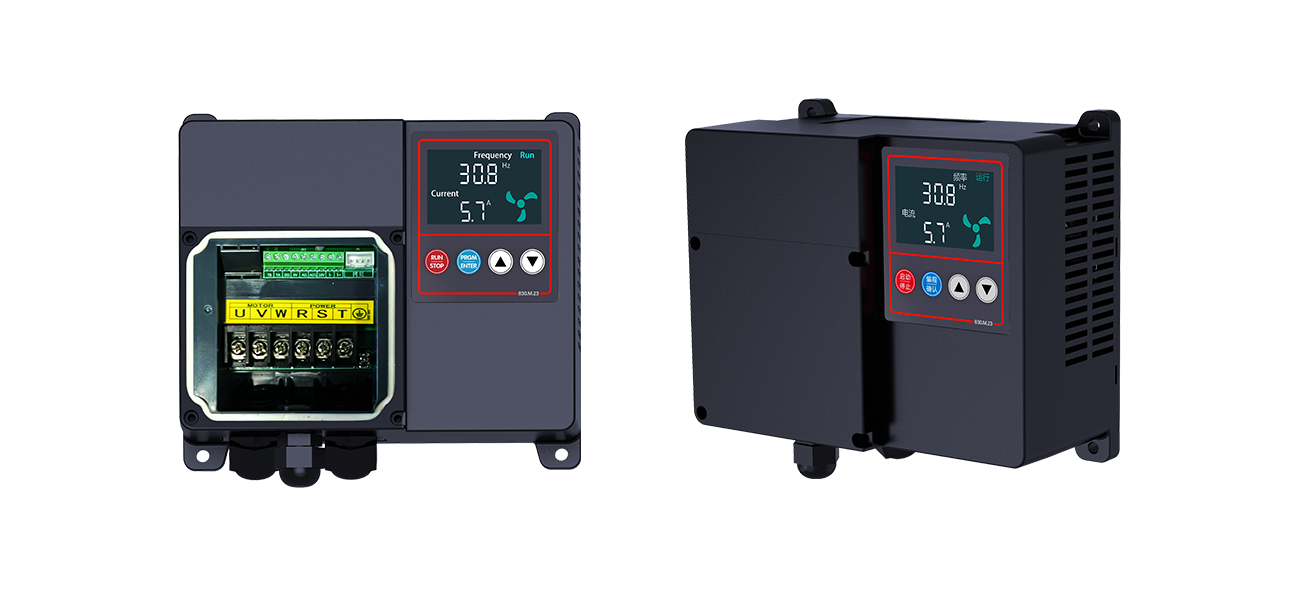

The Y836 Waterproof AC Drive VFD. This product utilizes advanced vector control and V/F control technologies, with a power range covering 0.75kW to 2.2kW, meeting the driving requirements of various industrial scenarios. Its optimized thermal dissipation structure ensures stable operation under high loads and provides an IP54 protection rating, effectively resisting dust ingress and water splashes, guaranteeing reliability in harsh industrial environments.
Type | Terminal | Terminal Name | Function Description |
Power Output | +10V-0V | Terminal of 10V power output | Provide +10V power supply for external units, with maximum output current of 10mA. It is generally used as the operating power supply for the external potentiometer. The potentiometer resistance range is 1-5kΩ. |
Analog Input | AI1-0V | Analog input terminal 1 | 1. Input voltage range： DC 0-10V 2. Input impedance： 22kΩ |
Digital Input | DI1-0V | Digital Input 1 | 1. Optical coupling isolation. 2. 2. Input impedance：2.4kΩ. |
Analog Output | AO1-0V | Analog output | Only for temperature sensors |
485 Communication Interface | S+/S- | 485 communication interface | Respectively are the positive end of 485 differential signal and the negative end of 485 differential signal (reference ground: GND). Standard 485 communication interface, please use twisted pair or shielded cable. |
Relay Output | T/A-T/B | Normally open | Contact driving capacity：250Vac，3A； 30Vdc, 1A |
