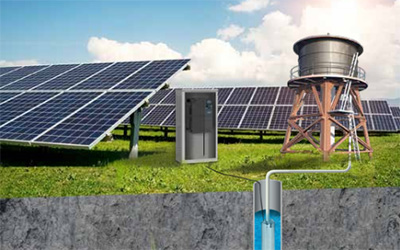

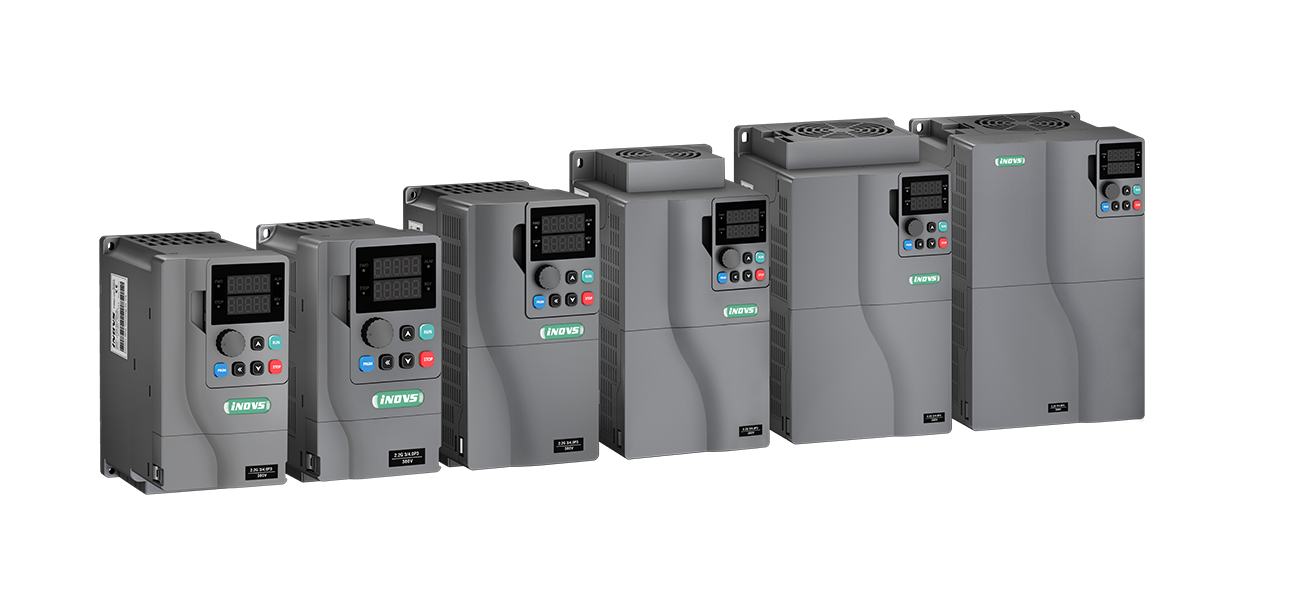

PV500 series solar vfd drives are that Indrvct newly launches specially for solar pumping applications. Based on the original solar pump vfd products, which optimizes the usability and performance, and extends applicable voltage levels and power range of the product. The voltage level can be applied to single phase/three phase 220V, three phase 380V pumps, power range from 0.75KW to 132KW.
The figure below shows the standard wiring of PV500 Series Solar Pump VFD.
Input Specification | |
PV Input | |
Maximum Input DC Voltage | 400VDC |
Recommended MPPT Voltage Range | 250～350VDC |
Recommended Input Operation Voltage | 320VDC |
Grid or Backup Generator Input | |
Input Voltage | Single phase 220V (-15%～30%) |
Output Specification | |
Rated Output Voltage | 3PH 220V |
Output Frequency | 0～500.00Hz（default: 0～50.00Hz） |
Protection | |
Built-in Protection | Lighting Protection, over-current, over voltage, output phase-lose, under-load, under-voltage, short circuit, overheating, water pump idling etc. |
Input Specification | |
PV Input | |
Maximum Input DC Voltage | 800VDC |
Recommended MPPT Voltage Range | 450～650VDC |
Recommended Input Operation Voltage | 540VDC |
Grid or Backup Generator Input | |
Input Voltage | Three phase 380V (-15%～30%) |
Output Specification | |
Rated Output Voltage | 3PH 380V |
Output Frequency | 0～500.00Hz（Default 0～50.00Hz） |
Protection | |
Built-in Protection | Lighting Protection, over-current, over voltage, output phase-lose, under-load, under-voltage, short circuit, overheating, water pump idling etc. |
General Parameters | |
Application Site | No direct sunshine, no dust, corrosive gas, combustible gas, oil mist, steam, dripping or salinity etc. |
Altitude and Derating Use | 0～2000 m |
| Derated use above 1000m, per 100m, the rated output current decrease 1%. |
Environment Temperature and Derating Use | -10℃～40℃ (Environment Temperature be 40℃～50℃, please keep derated use.) |
Humidity | ≤ 95%, non-condensation |
Vibration | less than 5.9 m/s2（0.6g） |
Storage Temperature | -40℃～+70℃ |
Efficiency | Rated Power Run≥93% |
Installation | Wall or rail mounting |
Protection Grade | IP20 |
Cooling | Forced Air Cooling |
